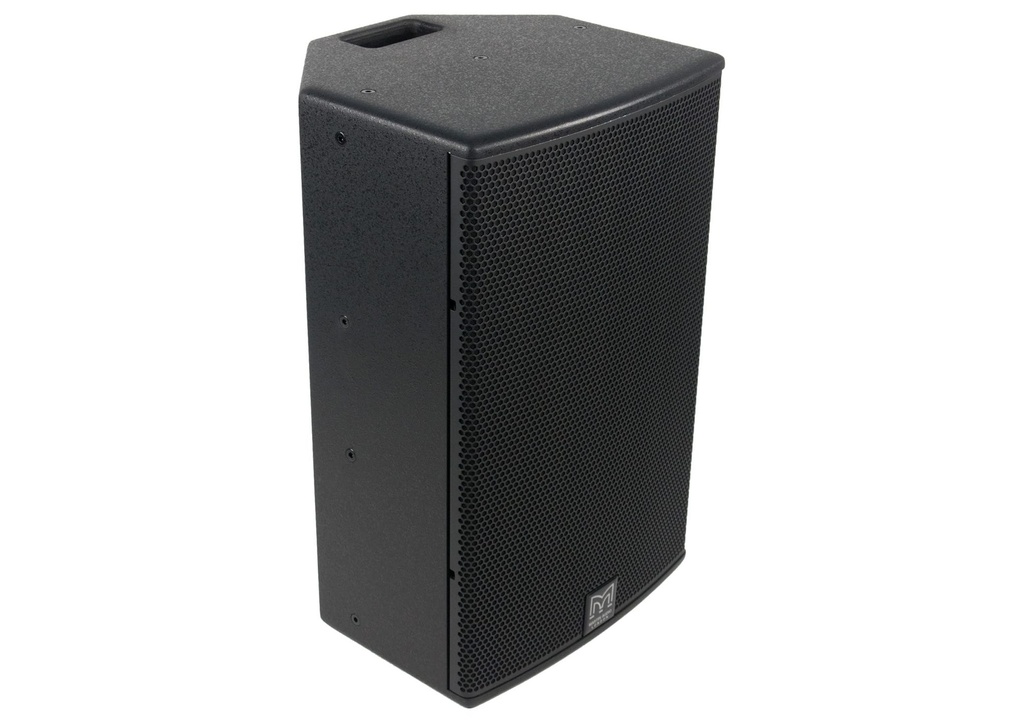

Martin Audio X12B - 12" Passive Two-way Portable Loudspeaker

X12B - 12" Passive Two-way Portable Loudspeaker Martin Audio

The Blackline X12 fulfils the requirement for a compact system that can deliver high sound levels — either as a stand-alone system or sup-plemented by a BlacklineX subwoofer. Featuring a 12” (300mm) LF driver unit and a 1” (25mm) exit compression driver on a user-rotatable horn, its 80° x 50° disp

The Blackline X12 fulfils the requirement for a compact system that can deliver high sound levels — either as a stand-alone system or sup-plemented by a BlacklineX subwoofer. Featuring a 12” (300mm) LF driver unit and a 1” (25mm) exit compression driver on a user-rotatable horn, its 80° x 50° dispersion pattern is ideal for medium throw applications.

Power

300 W

Weight

17 kg

Dimensions

337 x 358 x 574 mm

Request a Quote Data Sheet Manufacturer

Reference X12B Brand Martin Audio

Overview

X12B - 12" Passive Two-way Portable Loudspeaker at a Glance

The Blackline X12 fulfils the requirement for a compact system that can deliver high sound levels ? either as a stand-alone system or sup-plemented by a BlacklineX subwoofer. Featuring a 12? (300mm) LF driver unit and a 1? (25mm) exit compression driver on a user-rotatable horn, its 80? x 50? dispersion pattern is ideal for medium throw applications.

Description

About the X12B - 12" Passive Two-way Portable Loudspeaker

Manufacturer detail for the X12B - 12" Passive Two-way Portable Loudspeaker by Martin Audio.

Technical Overview

TheBlackline X12LF driver has a 2.5” (63mm) voice coil and a high BL motor, while the HF compression driver utilises a 1.75” (44mm) poly-imide diaphragm for extended high frequency response. Use with a BlacklineX Series subwoofer will enable the X12 to operate as a dancefloor or sound reinforcement

Specifications

Technical Specifications

Full published figures for the X12B - 12" Passive Two-way Portable Loudspeaker by Martin Audio.

TYPE: Compact, passive two-way system
FREQUENCY RESPONSE (5): 62Hz-20kHz ± 3dB, -10dB @ 50Hz
DRIVER: LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER (2): 300W AES, 1200W peak
SENSITIVITY (8): 97dB
MAXIMUM SPL (9): 122dB continuous, 128dB peak
NOMINAL IMPEDANCE: 8Ω
DISPERSION (-6dB): 80° H x 50° V (user-rotatable)
CROSSOVER: 2.3kHz passive
ENCLOSURE: Multi-angle birch/poplar ply
FINISH: Black textured paint
PROTECTIVE GRILLE: Black perforated steel with scrim cloth backing

Show all 20 specifications Show fewer specifications

CONNECTORS: 2 x NL4 type
PIN CONNECTIONS (INPUT): 1+/1-
PIN CONNECTIONS (LINK): 1+/- to 1+/-
FITTINGS: 20 x M8 inserts, pole-mount socket, 1 x bar handle

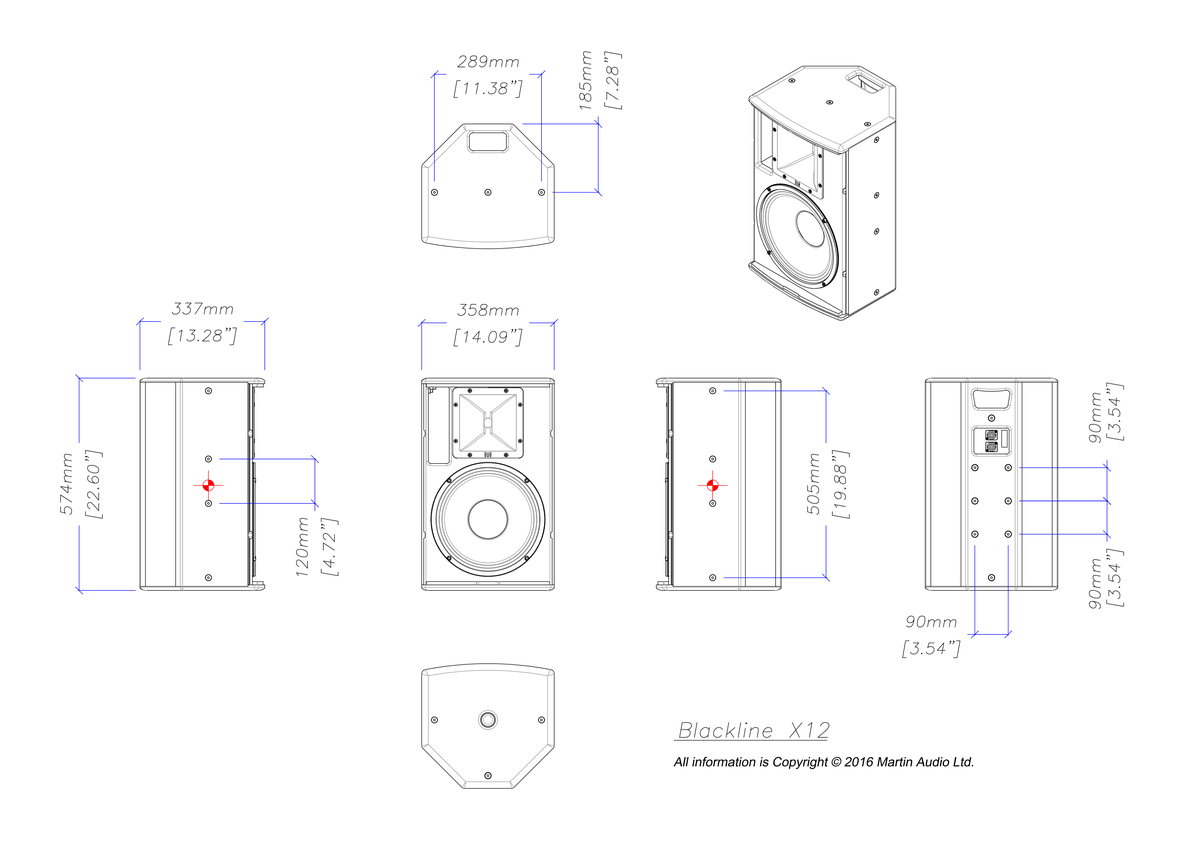

DIMENSIONS: (W) 358mm x (H) 574mm x (D) 337mm (W) 14.1ins x (H) 22.6ins x (D) 13.7ins
WEIGHT: 17kg (37.5lbs)
ACCESSORIES: Wall bracket, eyebolts
Power Consumption: 300 W
